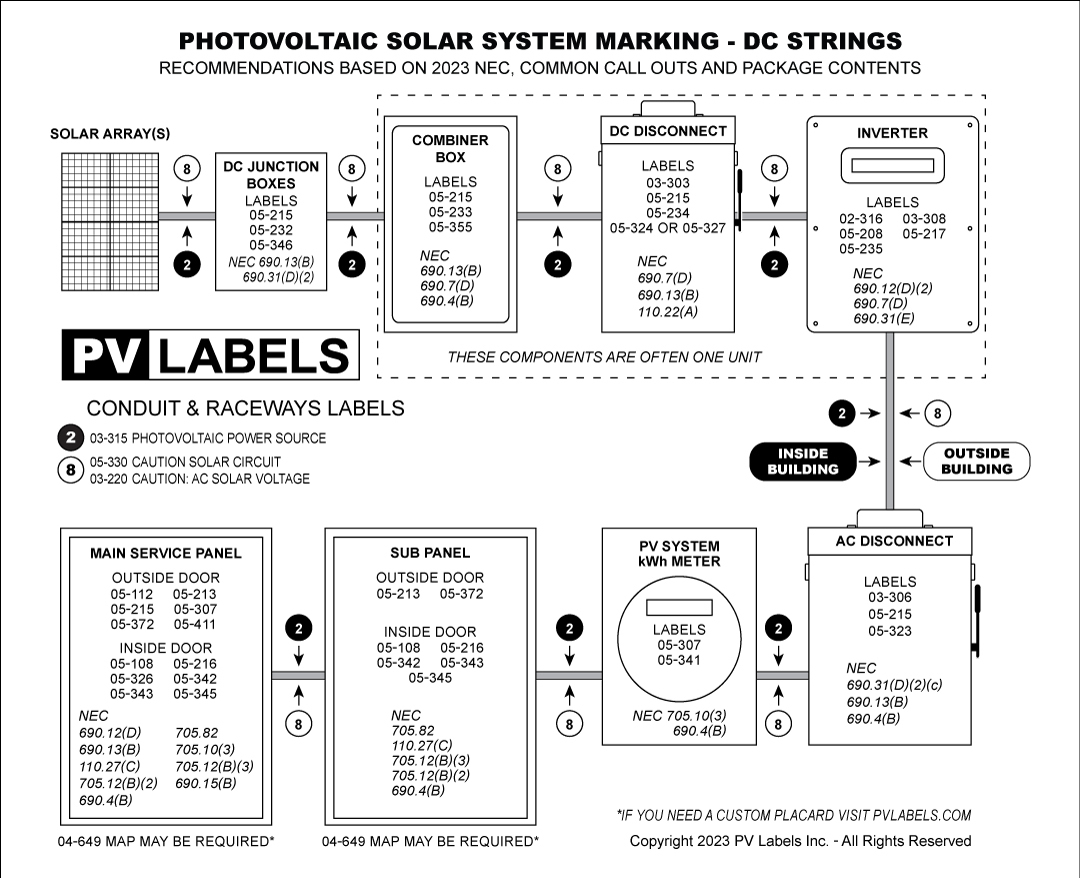

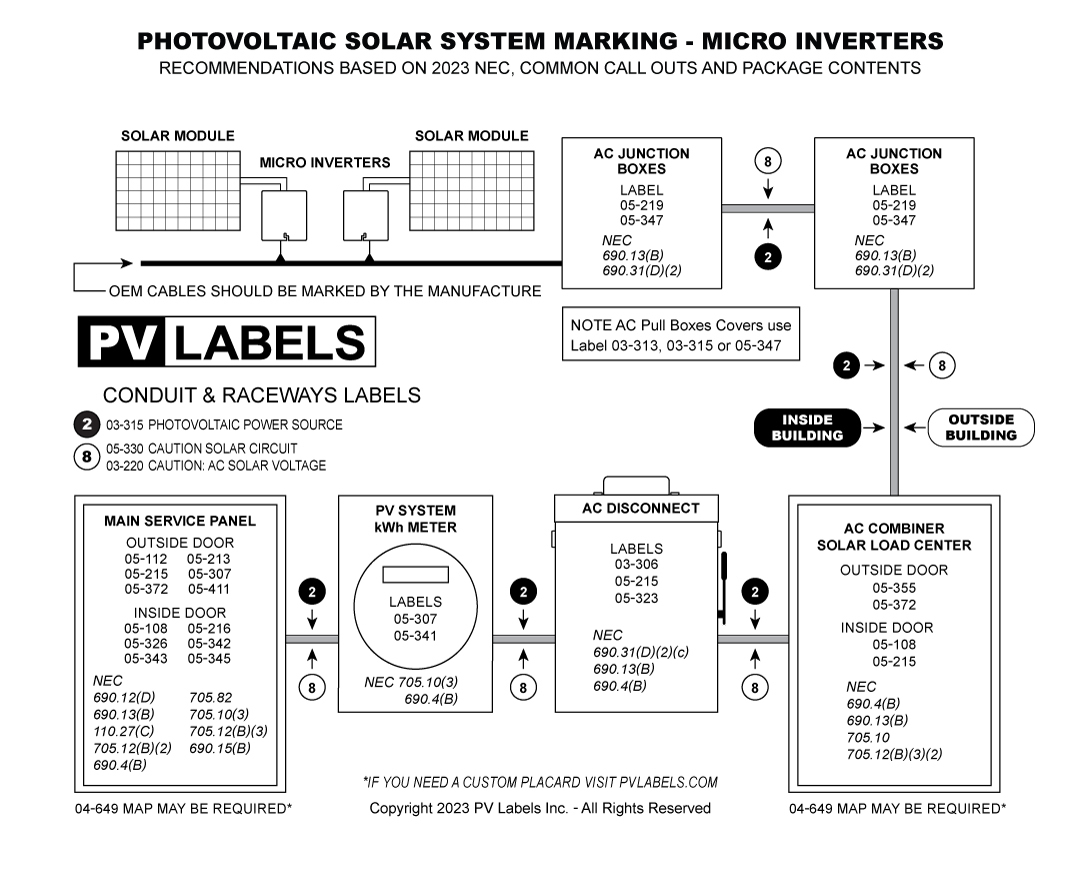

PLACEMENT GUIDE
2020 NEC Placement Guide (05-520)
| 2020 NEC ASSORMENT PACK | |
| 02-316 | RAPID SHUTDOWN - SWITCH FOR - SOLAR PV SYSTEM |
| 03-303 | MAXIMUM DC VOLTAGE- OF PV SYSTEM DISCONNECT |
| 03-306 | AC DISCONNECT PHOTOVOLTAIC SYSTEM POWER SOURCE - RATED AC OUTPUT CURRENT WRITE IN (AMPS) - NOMINAL OPERATING AC VOLTAGE WRITE IN (VOLTS) |
| 03-308 | VOLTAGE RATING LABEL - MAXIMUM VOLTAGE WRITE IN -MAXIMUM CIRCUIT CURRENT WRITE IN - MAX RATED OUTPUT CURRENT OF THE CHARGE CONTROLLER OR DC-TO-DC CONVERTER (IF INSTALLED) WRITE IN |
| 03-309 | AC RATING LABEL NOMINAL OPERATING AC VOLTAGE WRITE IN (V) NOMINAL OPERATING AC VOLTAGE WRITE IN (A) NOMINAL OPERATING AC FREQUENCY WRITE IN (A) MAXIMUM AC POWER WRITE IN (HZ) MAXIMUM OVERCURRENT DEVICE RATING FOR AC MODULE PROTECTION PER CIR… |
| 03-313 | SOLAR PV DC CIRCUIT |
| 03-315 | PHOTOVOLTAIC POWER SOURCE |
| 03-326 | WARNING - DO NOT DISCONNECT - UNDER LOAD |
| 03-327 | PHOTOVOLTAIC SYSTEM - DISCONNECT |
| 05-108 | WARNING - THIS EQUIPMENT FED BY MULTIPLE - SOURCES. TOTAL RATING OF ALL - OVERCURRENT DEVICES EXCLUDING - MAIN SUPPLY OVERCURRENT - DEVICE SHALL NOT EXCEED - AMPACITY OF BUSBAR |
| 05-109 | PV SYSTEM DISCONNECT - WARNING - ELECTRIC SHOCK HAZARD - DO NOT TOUCH TERMINALS - TERMINALS ON BOTH THE LINE AND - LOAD SIDES MAY BE ENERGIZED - IN THE OPEN POSITION |
| 05-112 | SOLAR PV SYSTEM EQUIPPED - WITH RAPID SHUTDOWN - TURN RAPID SHUTDOWN SWITCH TO - THE "OFF" POSITION TO SHUT DOWN - PV SYSTEM AND REDUCE - SHOCK HAZARD IN THE ARRAY |
| 05-114 | SOLAR PV SYSTEM EQUIPPED - WITH RAPID SHUTDOWN - TURN RAPID SHUTDOWN SWITCH TO - THE "OFF" POSITION TO SHUT DOWN - CONDUCTORS OUTSIDE THE ARRAY - CONDUCTORS WITHIN THE ARRAY - REMAIN ENERGIZED IN SUNLIGHT |
| 05-208 | DIRECT CURRENT - PHOTOVOLTAIC POWER SOURCE - MAXIMUM VOLTAGE (VDC) - MAX CIRCUIT CURRENT (AMPS) |
| 05-215 | WARNING - ELECTRIC SHOCK HAZARD - TERMINALS ON BOTH THE LINE AND - LOAD SIDES MAY BE ENERGIZED - IN THE OPEN POSITION |
| 05-216 | WARNING - POWER SOURCE - OUTPUT CONNECTION - DO NOT RELOCATE THIS - OVERCURRENT DEVICE |
| 05-217 | WARNING - THE DISCONNECTION OF THE - GROUNDED CONDUCTORS(S) - MAY RESULT IN OVERVOLTAGE - ON THE EQUIPMENT |
| 05-219 | AC JUNCTION BOX - WARNING - ELECTRIC SHOCK HAZARD - DO NOT TOUCH TERMINALS - TERMINALS ON BOTH THE LINE AND - LOAD SIDES MAY BE ENERGIZED - IN THE OPEN POSITION - CAUTION SOLAR CIRCUIT |
| 05-232 | DC JUNCTION BOX WARNING ELECTRIC SHOCK HAZARD DO NOT DISCONNECT UNDER LOAD. PHOTOVOLTAIC POWER SOURCE |
| 05-233 | DC COMBINER BOX WARNING - DC COMBINER BOX LABEL WITH 1 WRITE IN LINES |
| 05-234 | WARNING - MAXIMUM DC VOLTAGE OF PV SYSTEM WRITE IN (V) |
| 05-235 | SOLAR INVERTER WARNING - SOLAR INVERTER LABEL WITH 1 WRITE IN LINE |
| 05-307 | CAUTION MULTIPLE SOURCES OF POWER |
| 05-322 | WARNING - SOLAR ELECTRIC BREAKER IS BACKFED |
| 05-323 | AC DISCONNECT |
| 05-324 | DC DISCONNECT |
| 05-326 | WARNING - DO NOT DISCONNECT - UNDER LOAD |
| 05-330 | CAUTION SOLAR CIRCUIT |
| 05-334 | CAUTION - PHOTOVOLTAIC -SYSTEM - KWH METER |
| 05-342 | WARNING -SOLAR ELECTRIC - CIRCUIT BREAKER - IS BACKFED - (SHEET OF 10PCS) |
| 05-343 | PHOTOVOLTAIC - SOLAR BREAKER - (SHEET OF 10PCS) |
| 05-345 | DO NOT RELOCATE THIS - OVERCURRENT DEVICE - (SHEET OF 10PCS) |
| 05-346 | WARNING - ELECTRIC SHOCK HAZARD - THE DC CONDUCTORS OF THIS - PHOTOVOLTAIC SYSTEM - ARE UNGROUNDED AND MAY - BE ENERGIZED |
| 05-347 | WARNING -PHOTOVOLTAIC - POWER SOURCE - (SHEET OF 10PCS) |
| 05-355 | WARNING - PHOTOVOLTAIC SYSTEM - COMBINER PANEL - DO NOT ADD LOADS |
| 05-372 | WARNING - TURN OFF PHOTOVOLTAIC - AC DISCONNECT PRIOR TO - WORKING INSIDE PANEL |
| 05-411 | WARNING - DUAL POWER SUPPLY - SOURCES UTILITY GRID - AND PV SOLAR - ELECTRIC SYSTEM |
| 05-803 | CIRCUIT IDENTIFICATION 1 THRU 5 (10 LABELS PER SHEET) |
| 05-805 | NEGATIVE (10 LABELS PER SHEET) |
| 05-806 | POSITIVE (10 LABELS PER SHEET) |
| 05-809 | ON - CLOSED - OFF - OPEN IDENTIFICATION (10 LABELS PER SHEET) |
2017 NEC Placement Guide (05-517)
| 2017 NEC ASSORTMENT PACK | |
| 02-314 | WARNING PHOTOVOLTAIC - POWER SOURCE |
| 02-317 | PHOTOVOLTAIC SYSTEM - EQUIPPED WITH - RAPID SHUTDOWN |
| 02-318 | DC PHOTOVOLTAIC - SOURCE CIRCUIT |
| 02-319 | DC PHOTOVOLTAIC - OUTPUT CIRCUIT |
| 05-100 | WARNING - ELECTRIC SHOCK HAZARD - DO NOT TOUCH TERMINALS - TERMINALS ON BOTH THE LINE AND - LOAD SIDES MAY BE ENERGIZED - IN THE OPEN POSITION |
| 05-101 | WARNING - ELECTRIC SHOCK HAZARD - IF GROUND FAULT IS INDICATED - ALL NORMALLY GROUNDED - CONDUCTORS MAY BE - UNGROUNDED AND ENERGIZED |
| 05-102 | WARNING - ELECTRIC SHOCK HAZARD -DO NOT TOUCH TERMINALS - TERMINALS ON BOTH THE LINE AND - LOAD SIDES MAY BE ENERGIZED - IN THE OPEN POSITION - PHOTOVOLTAIC MODULES PRODUCE DC VOLTAGE - WHENEVER THEY ARE EXPOSED TO SUNLIGHT |
| 05-104 | WARNING - ELECTRIC SHOCK HAZARD - THE DC CONDUCTORS OF - THIS PHOTOVOLTAIC SYSTEM - ARE UNGROUNDED AND MAY BE ENERGIZED |
| 05-108 | WARNING - THIS EQUIPMENT FED BY MULTIPLE - SOURCES. TOTAL RATING OF ALL - OVERCURRENT DEVICES EXCLUDING - MAIN SUPPLY OVERCURRENT - DEVICE SHALL NOT EXCEED - AMPACITY OF BUSBAR |
| 05-110 | PHOTOVOLTAIC SYSTEM - DC DISCONNECT -RATED MPP CURRENT AMPS - RATED MPP VOLTAGE VOLTS - MAX SYSTEM VOLTAGE VDC - MAX CIRCUIT CURRENT AMPS |
| 05-210 | PHOTOVOLTAIC SYSTEM - AC DISCONNECT - RATED OUTPUT CURRENT AMPS - NOMINAL OPERATING AC VOLTAGE VOLTS |
| 05-211 | WARNING - DUAL POWER SUPPLY - SOURCES UTILITY GRID AND - PV SOLAR ELECTRIC SYSTEM |
| 05-212 | WARNING - INVERTER OUTPUT CONNECTION - DO NOT RELOCATE THIS - OVERCURRENT DEVICE |
| 05-322 | WARNING - SOLAR ELECTRIC BREAKER IS BACKFED |
| 05-323 | AC DISCONNECT |
| 05-324 | DC DISCONNECT |
| 05-325 | WARNING - DO NOT OPEN - UNDER LOAD |
| 05-326 | WARNING - DO NOT DISCONNECT - UNDER LOAD |
| 05-327 | PHOTOVOLTAIC - SOLAR SYSTEM - DISCONNECT |
| 05-328 | PHOTOVOLTAIC - SOLAR DISCONNECT |
| 05-329 | CAUTION SOLAR CIRCUIT |
| 05-330 | CAUTION SOLAR CIRCUIT |
| 05-332 | WARNING - DC JUNCTION BOX |
| 05-333 | PHOTOVOLTAIC - MAIN SOLAR SYSTEM - AC DISCONNECT |
| 05-334 | CAUTION - PHOTOVOLTAIC -SYSTEM - KWH METER |
| 05-335 | CAUTION - SOLAR ELECTRIC SYSTEM CONNECTED |
| 05-337 | WARNING - DC COMBINER BOX |
| 05-338 | CAUTION - SOLAR POINT OF CONNECTION |
| 05-342 | WARNING -SOLAR ELECTRIC - CIRCUIT BREAKER - IS BACKFED - (SHEET OF 10PCS) |
| 05-343 | PHOTOVOLTAIC - SOLAR BREAKER - (SHEET OF 10PCS) |
| 05-345 | DO NOT RELOCATE THIS - OVERCURRENT DEVICE - (SHEET OF 10PCS) |
| 05-346 | WARNING - ELECTRIC SHOCK HAZARD - THE DC CONDUCTORS OF THIS - PHOTOVOLTAIC SYSTEM - ARE UNGROUNDED AND MAY - BE ENERGIZED |
| 05-347 | WARNING -PHOTOVOLTAIC - POWER SOURCE - (SHEET OF 10PCS) |
| 05-355 | WARNING - PHOTOVOLTAIC SYSTEM - COMBINER PANEL - DO NOT ADD LOADS |
| 05-359 | WARNING - THIS SERVICE METER - IS ALSO SERVED BY A - PHOTOVOLTAIC SYSTEM |
| 05-373 | CAUTION - SOLAR CIRCUIT - DISCONNECT |
| 05-377 | WARNING -PV SOURCE CIRCUIT |
| 05-379 | CAUTION - PV OUTPUT CIRCUIT |
| 05-381 | WARNING - INVERTER INPUT CIRCUIT |
| 05-383 | CAUTION - INVERTER OUTPUT CIRCUIT |
| 05-389 | PHOTOVOLTAIC SOLAR - DC DISCONNECT |
| 05-393 | PHOTOVOLTAIC SOLAR - AC DISCONNECT |
| 05-411 | WARNING - DUAL POWER SUPPLY - SOURCES UTILITY GRID - AND PV SOLAR - ELECTRIC SYSTEM |
| 05-412 | WARNING - INVERTER OUTPUT CONNECTION - DO NOT RELOCATE - THIS OVERCURRENT - DEVICE |
| 05-803 | CIRCUIT IDENTIFICATION 1 THRU 5 (10 LABELS PER SHEET) |
2014 NEC Placement Guide (05-510)
| NEC 2014 ASSORTMENT PACK | |
| 02-314 | WARNING PHOTOVOLTAIC - POWER SOURCE |
| 02-317 | PHOTOVOLTAIC SYSTEM - EQUIPPED WITH - RAPID SHUTDOWN |
| 02-318 | DC PHOTOVOLTAIC - SOURCE CIRCUIT |
| 02-319 | DC PHOTOVOLTAIC - OUTPUT CIRCUIT |
| 05-100 | WARNING - ELECTRIC SHOCK HAZARD - DO NOT TOUCH TERMINALS - TERMINALS ON BOTH THE LINE AND - LOAD SIDES MAY BE ENERGIZED - IN THE OPEN POSITION |
| 05-101 | WARNING - ELECTRIC SHOCK HAZARD - IF GROUND FAULT IS INDICATED - ALL NORMALLY GROUNDED - CONDUCTORS MAY BE - UNGROUNDED AND ENERGIZED |
| 05-102 | WARNING - ELECTRIC SHOCK HAZARD -DO NOT TOUCH TERMINALS - TERMINALS ON BOTH THE LINE AND - LOAD SIDES MAY BE ENERGIZED - IN THE OPEN POSITION - PHOTOVOLTAIC MODULES PRODUCE DC VOLTAGE - WHENEVER THEY ARE EXPOSED TO SUNLIGHT |
| 05-104 | WARNING - ELECTRIC SHOCK HAZARD - THE DC CONDUCTORS OF - THIS PHOTOVOLTAIC SYSTEM - ARE UNGROUNDED AND MAY BE ENERGIZED |
| 05-108 | WARNING - THIS EQUIPMENT FED BY MULTIPLE - SOURCES. TOTAL RATING OF ALL - OVERCURRENT DEVICES EXCLUDING - MAIN SUPPLY OVERCURRENT - DEVICE SHALL NOT EXCEED - AMPACITY OF BUSBAR |
| 05-110 | PHOTOVOLTAIC SYSTEM - DC DISCONNECT -RATED MPP CURRENT AMPS - RATED MPP VOLTAGE VOLTS - MAX SYSTEM VOLTAGE VDC - MAX CIRCUIT CURRENT AMPS |
| 05-210 | PHOTOVOLTAIC SYSTEM - AC DISCONNECT - RATED OUTPUT CURRENT AMPS - NOMINAL OPERATING AC VOLTAGE VOLTS |
| 05-211 | WARNING - DUAL POWER SUPPLY - SOURCES UTILITY GRID AND - PV SOLAR ELECTRIC SYSTEM |
| 05-212 | WARNING - INVERTER OUTPUT CONNECTION - DO NOT RELOCATE THIS - OVERCURRENT DEVICE |
| 05-322 | WARNING - SOLAR ELECTRIC BREAKER IS BACKFED |
| 05-323 | AC DISCONNECT |
| 05-324 | DC DISCONNECT |
| 05-325 | WARNING - DO NOT OPEN - UNDER LOAD |
| 05-326 | WARNING - DO NOT DISCONNECT - UNDER LOAD |
| 05-327 | PHOTOVOLTAIC - SOLAR SYSTEM - DISCONNECT |
| 05-328 | PHOTOVOLTAIC - SOLAR DISCONNECT |
| 05-329 | CAUTION SOLAR CIRCUIT |
| 05-330 | CAUTION SOLAR CIRCUIT |
| 05-332 | WARNING - DC JUNCTION BOX |
| 05-333 | PHOTOVOLTAIC - MAIN SOLAR SYSTEM - AC DISCONNECT |
| 05-334 | CAUTION - PHOTOVOLTAIC -SYSTEM - KWH METER |
| 05-335 | CAUTION - SOLAR ELECTRIC SYSTEM CONNECTED |
| 05-337 | WARNING - DC COMBINER BOX |
| 05-338 | CAUTION - SOLAR POINT OF CONNECTION |
| 05-342 | WARNING -SOLAR ELECTRIC - CIRCUIT BREAKER - IS BACKFED - (SHEET OF 10PCS) |
| 05-343 | PHOTOVOLTAIC - SOLAR BREAKER - (SHEET OF 10PCS) |
| 05-345 | DO NOT RELOCATE THIS - OVERCURRENT DEVICE - (SHEET OF 10PCS) |
| 05-346 | WARNING - ELECTRIC SHOCK HAZARD - THE DC CONDUCTORS OF THIS - PHOTOVOLTAIC SYSTEM - ARE UNGROUNDED AND MAY - BE ENERGIZED |
| 05-347 | WARNING -PHOTOVOLTAIC - POWER SOURCE - (SHEET OF 10PCS) |
| 05-355 | WARNING - PHOTOVOLTAIC SYSTEM - COMBINER PANEL - DO NOT ADD LOADS |
| 05-359 | WARNING - THIS SERVICE METER - IS ALSO SERVED BY A - PHOTOVOLTAIC SYSTEM |
| 05-373 | CAUTION - SOLAR CIRCUIT - DISCONNECT |
| 05-377 | WARNING -PV SOURCE CIRCUIT |
| 05-379 | CAUTION - PV OUTPUT CIRCUIT |
| 05-381 | WARNING - INVERTER INPUT CIRCUIT |
| 05-383 | CAUTION - INVERTER OUTPUT CIRCUIT |
| 05-389 | PHOTOVOLTAIC SOLAR - DC DISCONNECT |
| 05-393 | PHOTOVOLTAIC SOLAR - AC DISCONNECT |
| 05-411 | WARNING - DUAL POWER SUPPLY - SOURCES UTILITY GRID - AND PV SOLAR - ELECTRIC SYSTEM |
| 05-412 | WARNING - INVERTER OUTPUT CONNECTION - DO NOT RELOCATE - THIS OVERCURRENT - DEVICE |
| 05-803 | CIRCUIT IDENTIFICATION 1 THRU 5 (10 LABELS PER SHEET) |
2011 NEC Placement Guide (03-500)
| 2011 NEC ASSORTMENT PACK | |
| 03-101 | WARNING - ELECTRIC SHOCK HAZARD - IF GROUND FAULT IS INDICATED - ALL NORMALLY GROUNDED - CONDUCTORS MAY BE - UNGROUNDED AND ENERGIZED |
| 03-102 | WARNING - ELECTRIC SHOCK HAZARD -DO NOT TOUCH TERMINALS - TERMINALS ON BOTH THE LINE AND - LOAD SIDES MAY BE ENERGIZED - IN THE OPEN POSITION - PHOTOVOLTAIC MODULES PRODUCE DC VOLTAGE - WHENEVER THEY ARE EXPOSED TO SUNLIGHT |
| 03-104 | WARNING - ELECTRIC SHOCK HAZARD - THE DC CONDUCTORS OF - THIS PHOTOVOLTAIC SYSTEM - ARE UNGROUNDED AND MAY BE ENERGIZED |
| 03-211 | WARNING - DUAL POWER SUPPLY - SOURCES UTILITY GRID AND - PV SOLAR ELECTRIC SYSTEM |
| 03-212 | WARNING - INVERTER OUTPUT CONNECTION - DO NOT RELOCATE - THIS OVERCURRENT DEVICE |
| 03-322 | WARNING - SOLAR ELECTRIC BREAKER IS BACKFED |
| 03-323 | AC DISCONNECT |
| 03-324 | DC DISCONNECT |
| 03-326 | WARNING - DO NOT DISCONNECT - UNDER LOAD |
| 03-327 | PHOTOVOLTAIC SYSTEM - DISCONNECT |
| 03-333 | MAIN SOLAR SYSTEM - AC DISCONNECT |
| 03-334 | PHOTOVOLTAIC SYSTEM - KWH METER |
| 03-335 | CAUTION SOLAR ELECTRIC - SYSTEM CONNECTED |
| 03-337 | DC COMBINER BOX |
| 03-338 | CAUTION - SOLAR POINT OF CONNECTION |
| 03-344 | PV SOLAR BREAKER - DO NOT RELOCATE - THIS OVERCURRENT - DEVICE - (SHEET OF 10PCS) |
| 03-353 | PHOTOVOLTAIC CIRCUITS ONLY - NO ADDITIONAL CIRCUITS ALLOWED |
| 03-355 | PHOTOVOLTAIC SYSTEM - COMBINER PANEL DO NOT ADD LOADS |
| 03-357 | THIS ELECTRIC SYSTEM - IS ALSO SERVED BY A - PHOTOVOLTAIC SYSTEM |
| 03-359 | WARNING - THIS SERVICE METER - IS ALSO SERVED BY A - PHOTOVOLTAIC SYSTEM |
| 03-369 | MICROINVERTERS LOCATED UNDER EACH PV MODULE |
| 03-370 | SOLAR REC METER |
| 03-411 | WARNING - DUAL POWER SUPPLY - SOURCES UTILITY GRID AND - PV SOLAR ELECTRIC SYSTEM |
| 03-412 | WARNING - WARNING - INVERTER OUTPUT CONNECTION - DO NOT RELOCATE - THIS OVERCURRENT - DEVICE |
| 05-803 | CIRCUIT IDENTIFICATION 1 THRU 5 (10 LABELS PER SHEET) |
| 03-110 | PHOTOVOLTAIC SYSTEM DC DISCONNECT - OPERATING VOLTAGE VDC - OPERATING CURRENT AMPS - MAX SYSTEM VOLTAGE VDC - SHORT CIRCUIT CURRENT AMPS, CHARGE CONTROLLER MAX AMPS |
| 03-210 | PHOTOVOLTAIC SYSTEM - AC DISCONNECT - OPERATING VOLTAGE VOLTS - OPERATING CURRENT AMPS |
| 03-352 | PV SYSTEM DISCONNECT - FOR UTILITY OPERATION |
| 03-100 | WARNING - ELECTRIC SHOCK HAZARD - DO NOT TOUCH TERMINALS - TERMINALS ON BOTH THE LINE AND - LOAD SIDES MAY BE ENERGIZED - IN THE OPEN POSITION |
| 03-332 | DC JUNCTION BOX |
| 03-342 | SOLAR ELECTRIC - CIRCUIT BREAKER - IS BACKFED - (SHEET OF 10PCS) |
| 03-343 | PHOTOVOLTAIC - SOLAR BREAKER - (SHEET OF 10PCS) |
| 03-345 | DO NOT RELOCATE THIS - OVERCURRENT DEVICE - (SHEET OF 10PCS) |
| 03-346 | WARNING - ELECTRIC SHOCK HAZARD - THE DC CONDUCTORS OF - THIS PHOTOVOLTAIC SYSTEM - ARE UNGROUNDED AND MAY BE ENERGIZED |
| 02-314 | WARNING PHOTOVOLTAIC - POWER SOURCE |
| 02-329 | CAUTION SOLAR CIRCUIT |
| 03-321 | PHOTOVOLTAIC POWER SOURCE |
| 03-329 | CAUTION SOLAR CIRCUIT |
| 03-330 | CAUTION SOLAR CIRCUIT |
